Certification: CE, RoHS, TUV,UL.
Feature: PCB Mountable, Pluggable, Anti-loosening, Easy Installation
Type: Pluggable PCB Terminal
Application: Electronics, Power Supply, Industrial Controller, Instrumentation
PCB mount terminal block features a pluggable structure for simple and fast PCB installation. Manufactured with high-purity brass conductive components and UL94 V0 flame retardant PA66 shell.
PCB Mount Pluggable Terminal Block — Female Socket
The pluggable PCB terminal is a two-part system: this female socket solders onto the PCB, while wires terminate into the mating male header plug. The payoff is serviceability — a module can be unplugged, tested, replaced or upgraded without touching a single solder joint or re-terminating a single wire.
That is why pluggables dominate PLC I/O cards, drive controllers, and any field-replaceable electronic module. The anti-loosening design keeps the plug locked under vibration, while the compact housing saves board space in high-density layouts.
Key Features
- Pluggable structure — fast installation and removal, ideal for serviceable modules
- Anti-loosening lock — stable connection under vibration
- Brass conductor + PA66 V-0 housing — durable plugging life, stable transmission
- Certified — UL, CE, RoHS, TÜV compliant
Technical Overview
| Item | Specification |
|---|---|
| Connection type | Pluggable (female socket, mates with male header plug) |
| Conductor material | High-purity brass |
| Housing material | PA66, UL94 V-0 flame retardant |
| Mounting | PCB through-hole solder |
| Certifications | UL, CE, RoHS, TÜV |
Typical Applications
- PLC and industrial controller I/O
- Power modules and drive controllers
- Instrumentation and automation equipment
- Any field-replaceable electronic module
For the full system overview, see Plug-in PCB Terminal Block — detachable plug & male header guide.

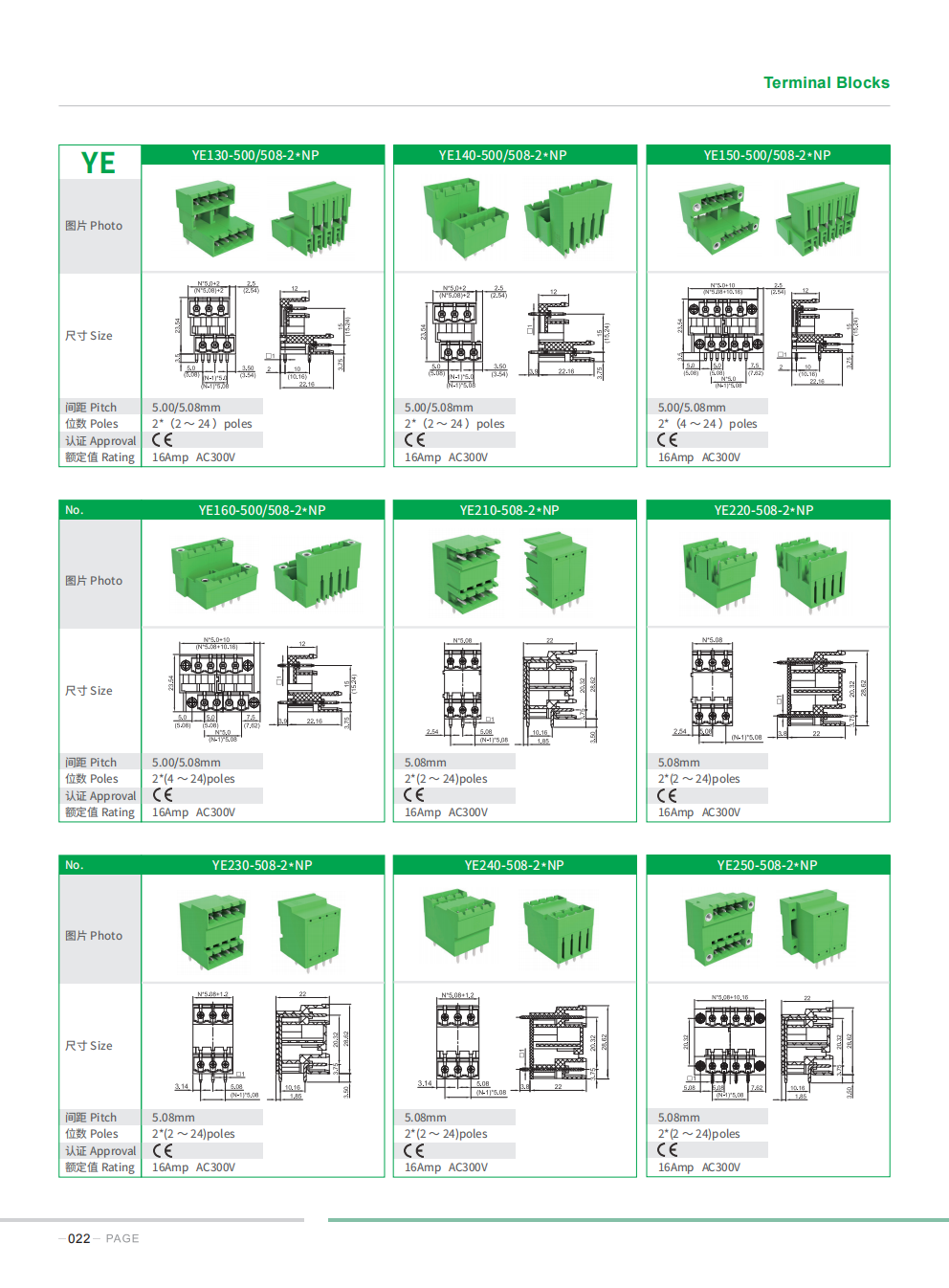

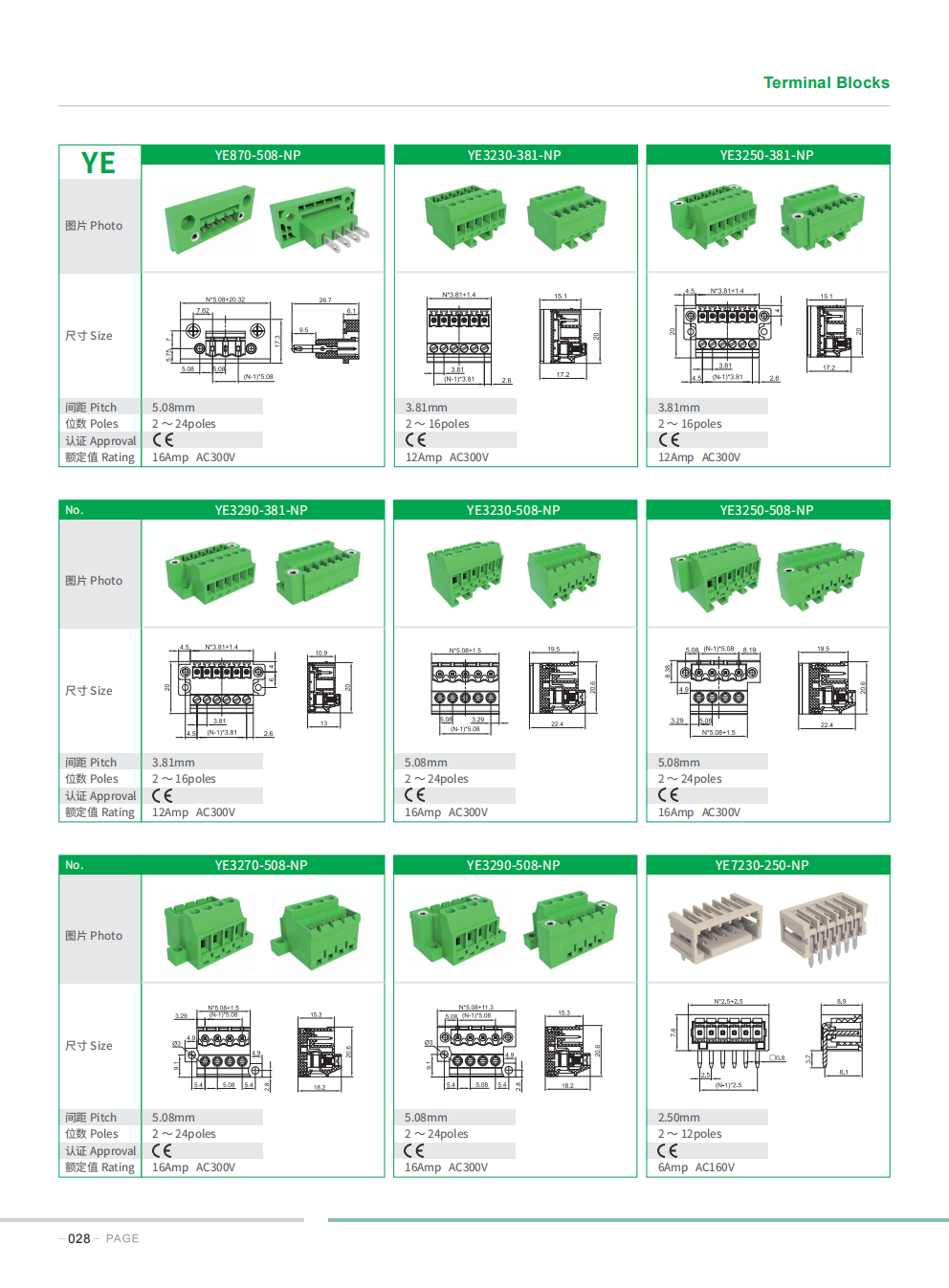

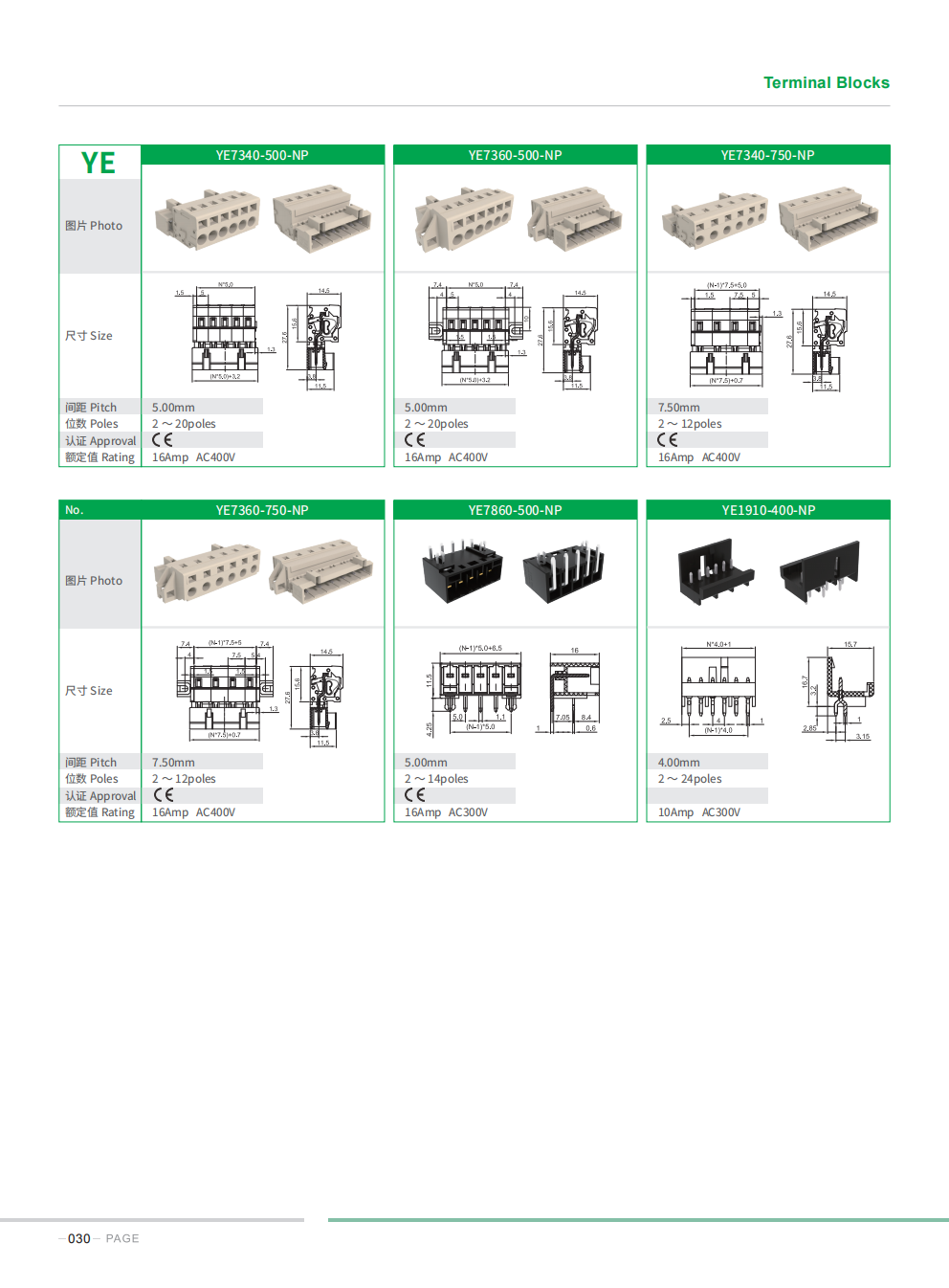

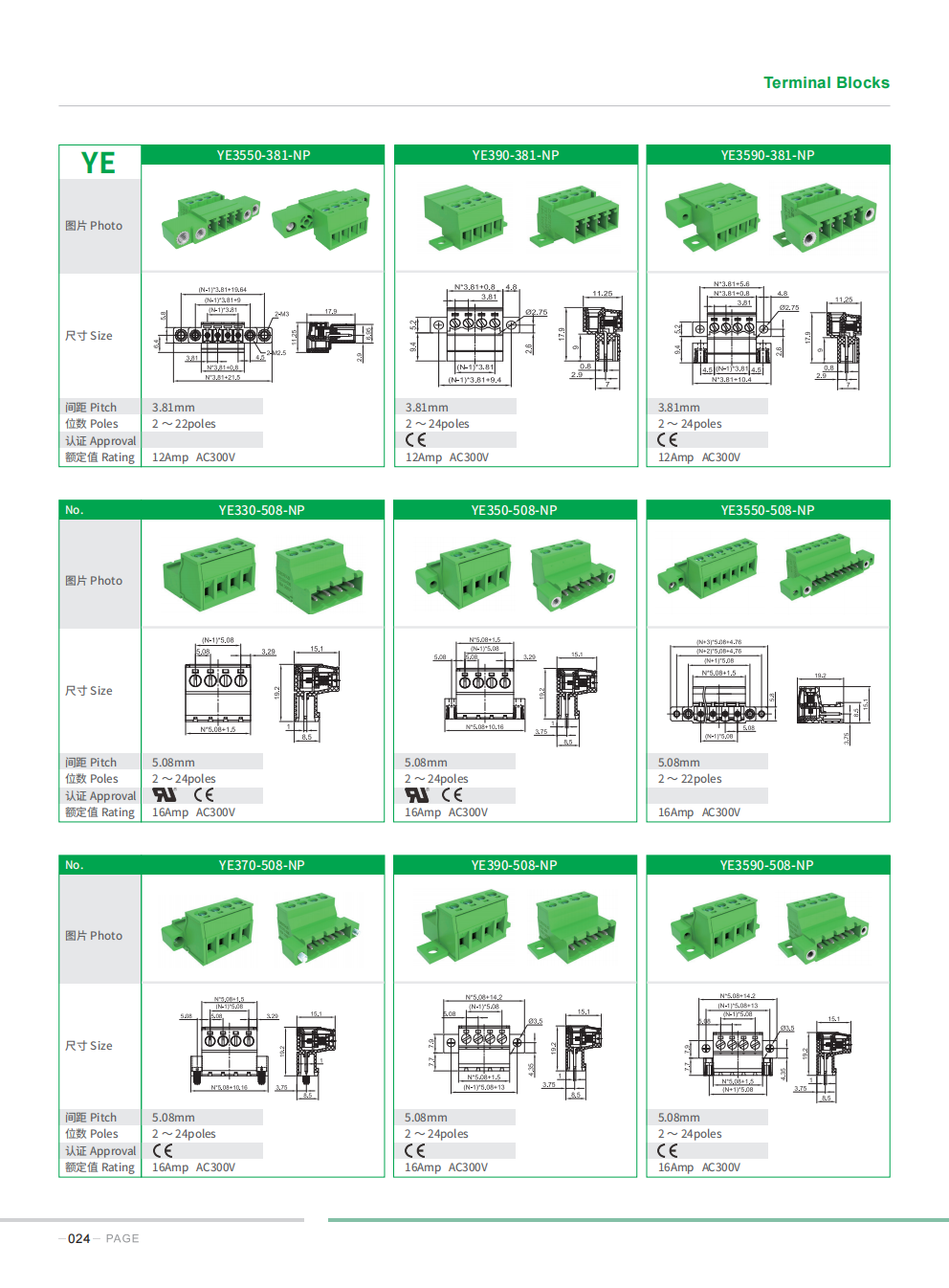

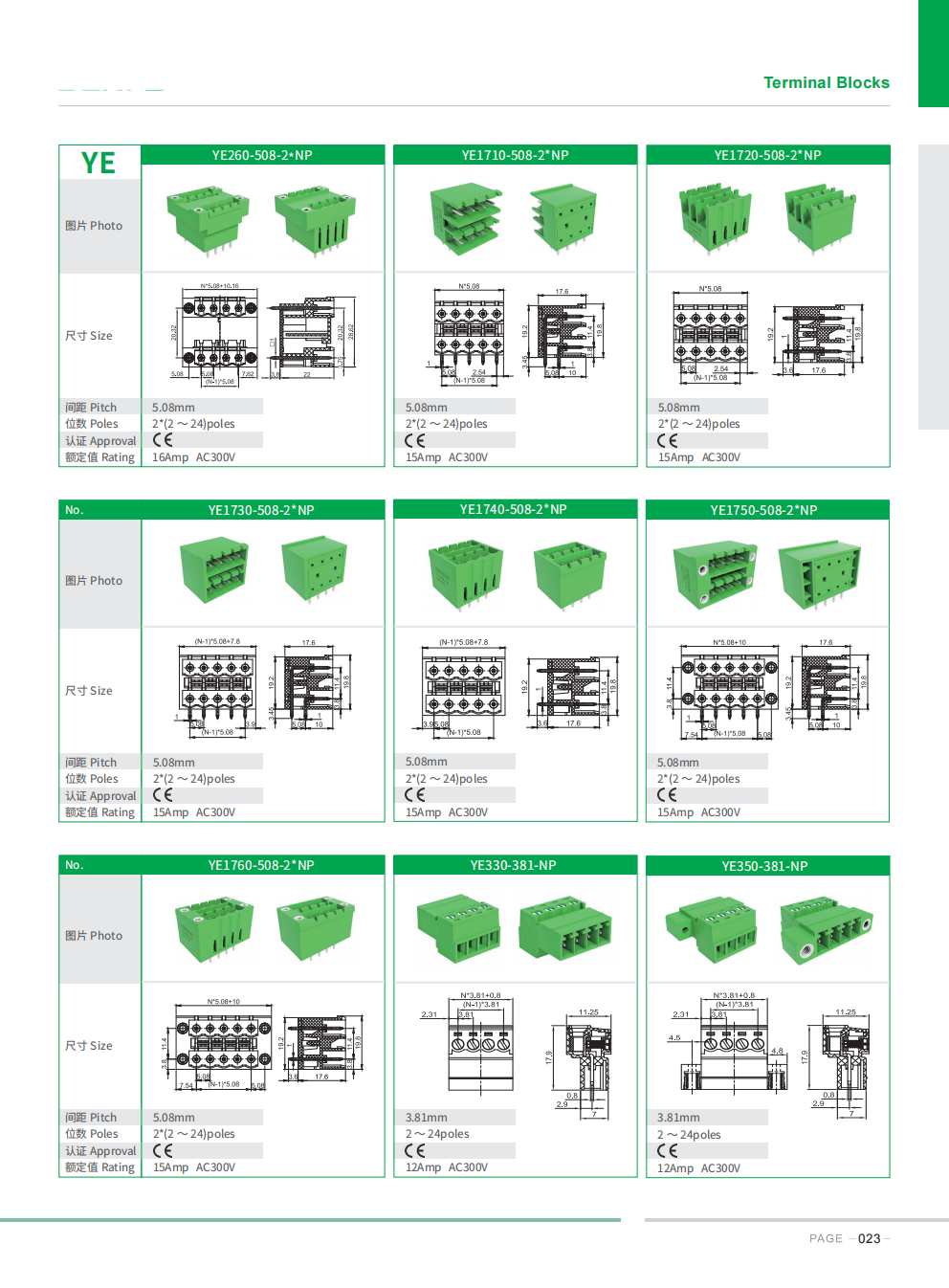

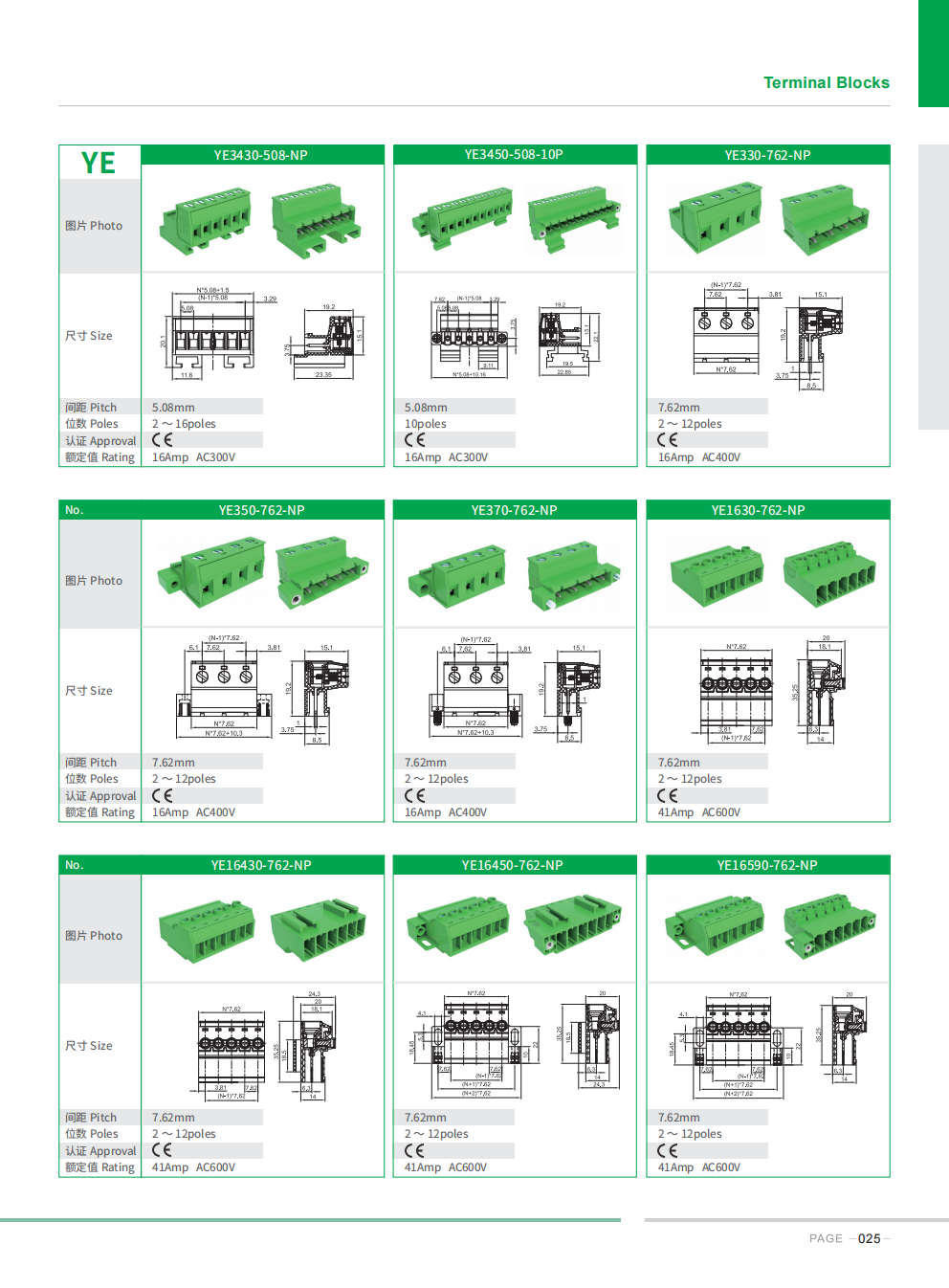

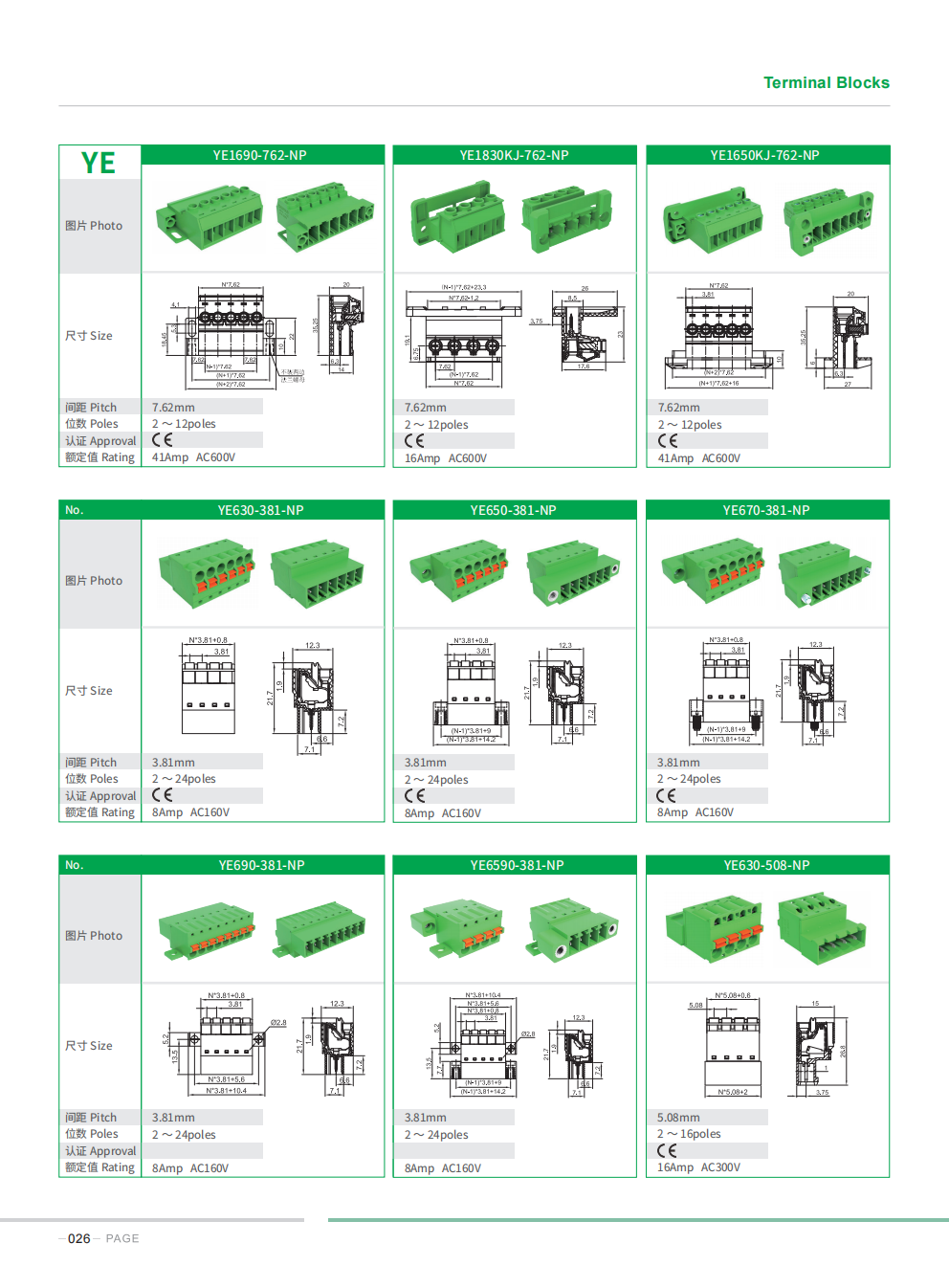

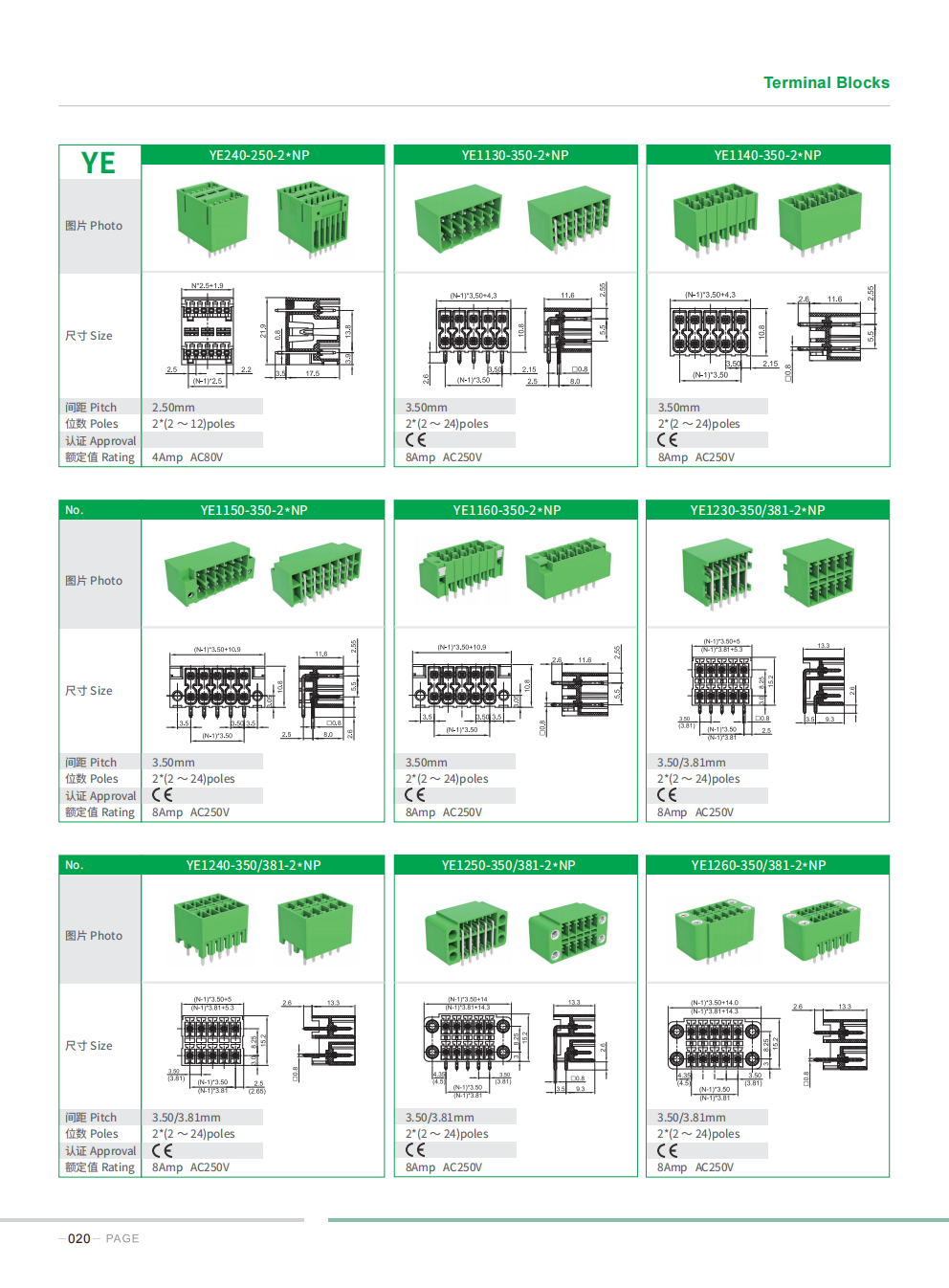

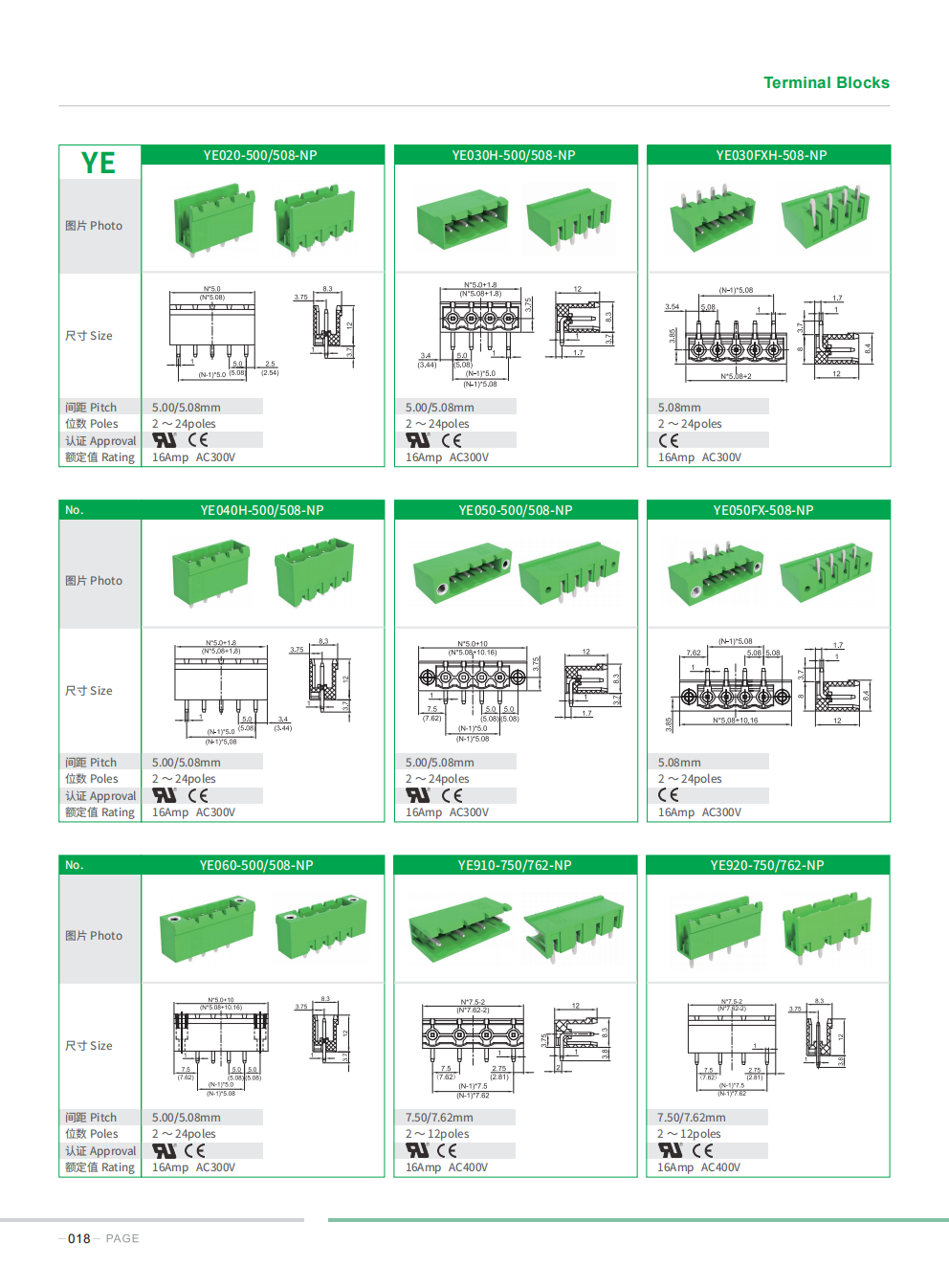

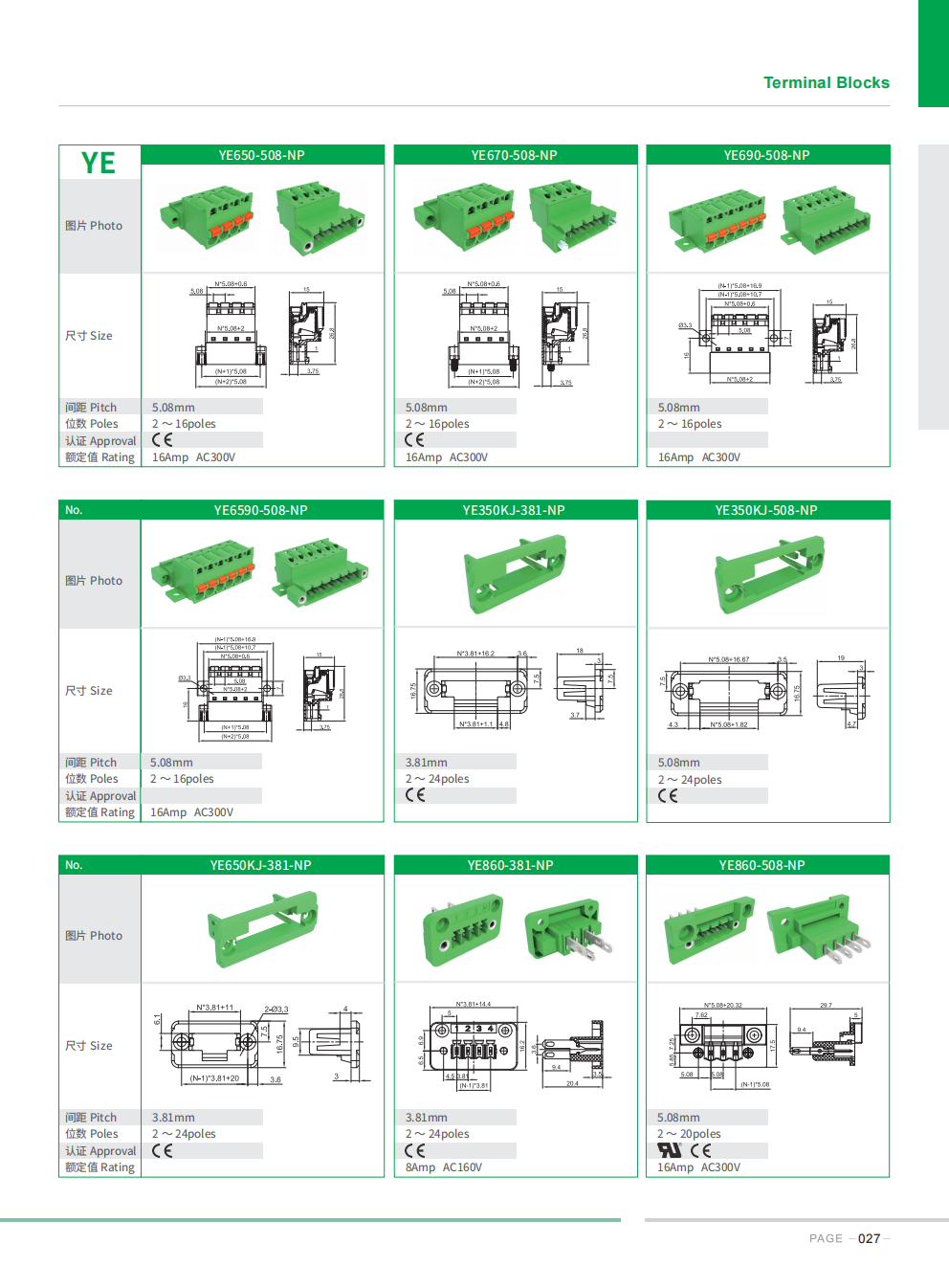

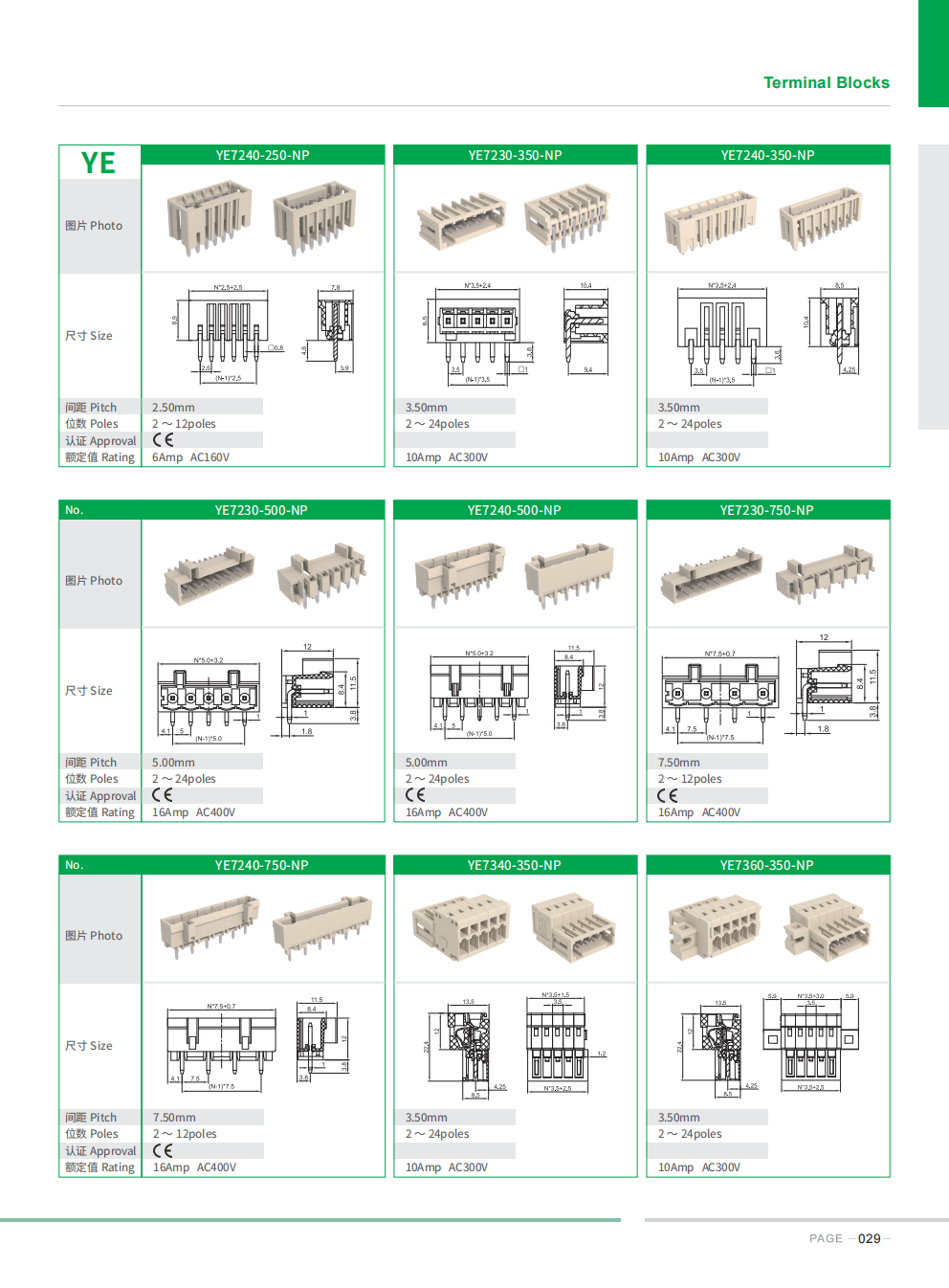

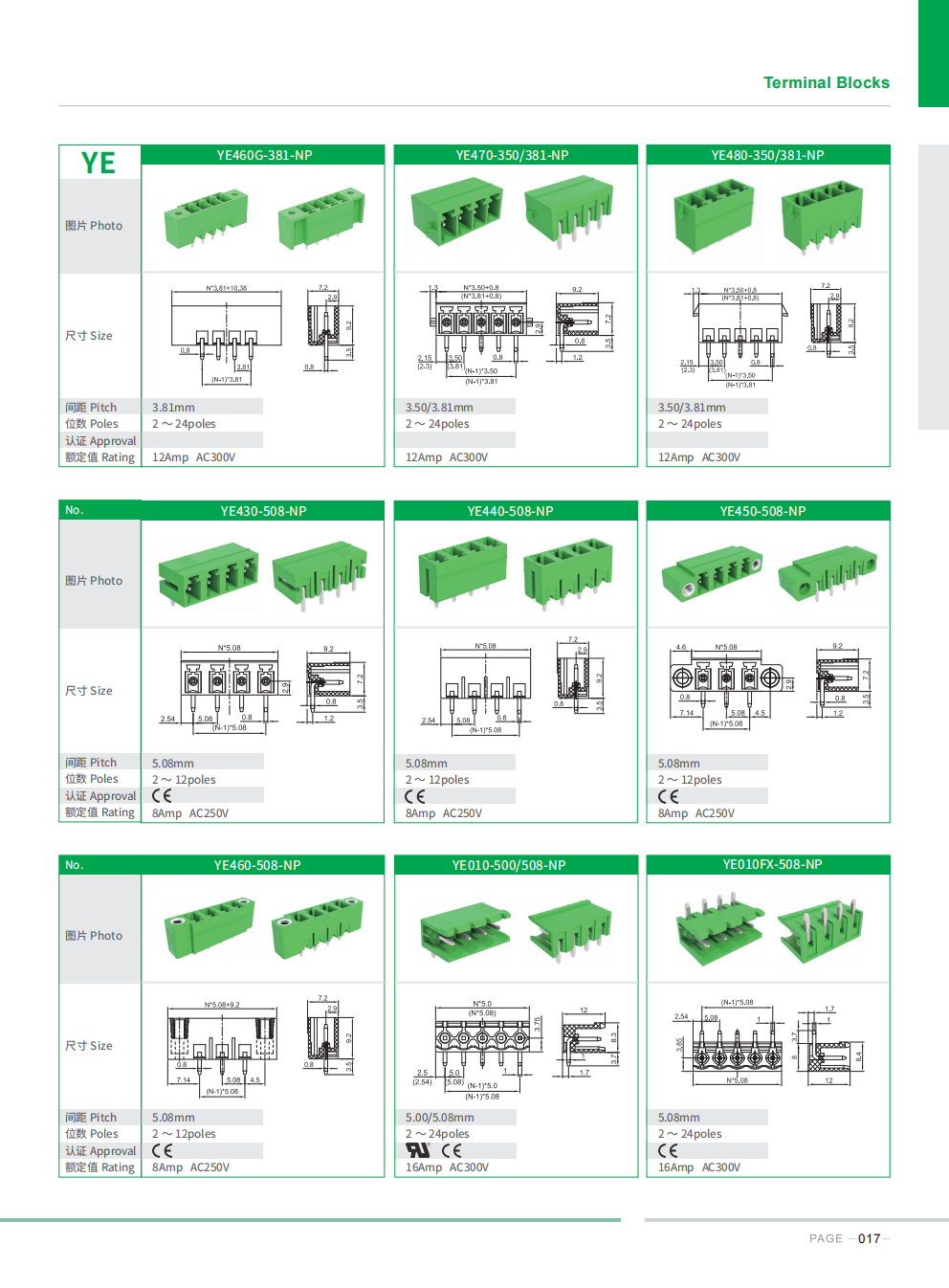

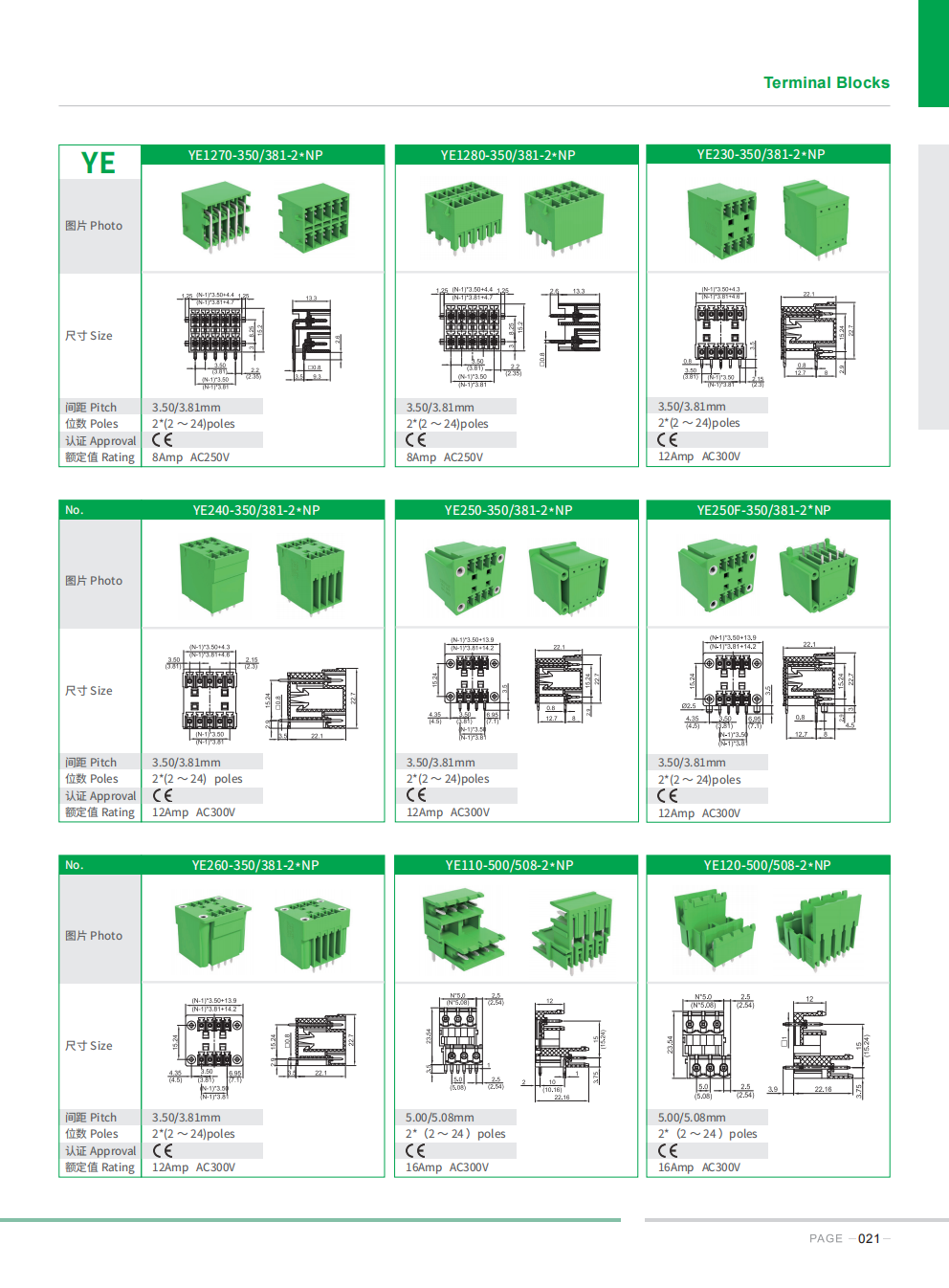

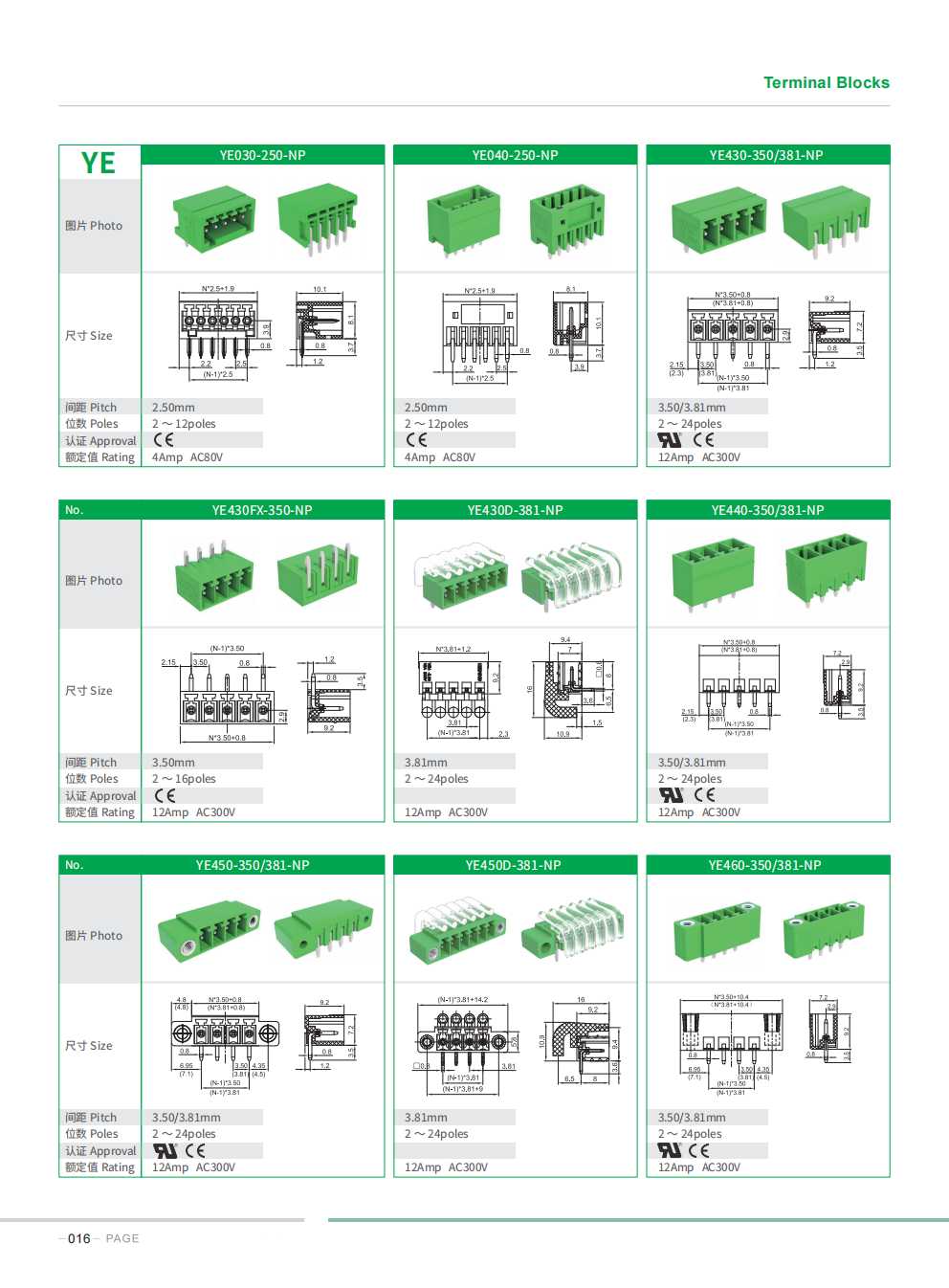

Pluggable PCB Terminal Blocks (Female Socket) — Specification Matrix
The pluggable PCB line covers pitch from 3.5mm to 10.16mm, current up to 32A. Female sockets solder to PCB; mate with the wire-side male header plug. Representative models:
| Series | Pitch | Voltage (IEC/UL) | Current (IEC/UL) | Wire Range | Poles | Typical Use |
|---|---|---|---|---|---|---|
| GSP001-5.0/5.08 | 5.0/5.08mm | 320V / 300V | 20A / 16A | 2.5mm² / 28-12 AWG | 2P-24P | Standard pluggable socket |
| GSP001W-5.0/5.08 | 5.0/5.08mm | 320V / 300V | 20A / 16A | 2.5mm² / 28-12 AWG | 2P-24P | Right-angle / wire-side entry |
| GSP001-7.5/7.62 | 7.5/7.62mm | 400V / 300V | 20A / 16A | 2.5mm² / 28-12 AWG | 2P-24P | 7.5mm pitch, 400V |
| GSP001A-5.0/5.08 | 5.0/5.08mm | 320V / 300V | 20A / 16A | 2.5mm² / 28-12 AWG | 2P-24P | Flange / mounting variant |
| GSP001AW-7.5/7.62 | 7.5/7.62mm | 400V / 300V | 20A / 16A | 2.5mm² / 28-12 AWG | 2P-24P | 7.5mm right-angle |
| GSP001T-5.0 / GSP001TW-5.0 | 5.0mm | 320V / 300V | 20A / 16A | 2.5mm² / 28-12 AWG | 2P-24P | Top / bottom entry variants |
| GSP001K-5.08-1000A | 5.08mm | 320V / 300V | 20A / 16A | 2.5mm² / 28-12 AWG | 2P-24P | High-voltage version 1000V |
| GSP001Y-5.08 / GSP001YC-5.08 | 5.08mm | 320V / 300V | 20A / 16A | 2.5mm² | 2P-24P | Open / closed header style |
| GSP001SU-5.08 / GSP001SCU-5.08 | 5.08mm | 320V / 300V | 10A / 15A | — | 2x (2P-24P) | Double-row socket |
| GSP001H-5.0/5.08 | 5.0/5.08mm | 250V / 300V | 12A / 12A | — | 2P-24P | Mini pluggable series |
All models: brass conductor, PA66 UL94 V-0 housing. Standards: IEC 60998, UL 1059, RoHS. Plugs available horizontal, vertical and same-direction-entry. 40+ variants in full catalog — request the complete model list and mating-plug datasheet below.
Full Datasheet & Ordering
Complete specification matrix — every pitch, pole count, entry direction, and matching male plug model — is available on request. Send us your pitch / pole / current requirement and we will return the matching socket, plug, datasheets and quotation, usually within one business day. Download the full catalog (PDF).
