-UK Series Terminal End Cover, UK Terminal Block End Barrier Insulating Baffle Plate For DIN35 Rail Terminals
Why Your UK Terminal Blocks Need End Covers
A D-UK end plate is a small part that solves three real problems on a DIN rail assembly:
- Electrical safety – the insulating baffle increases creepage and clearance at the last terminal in the group, so exposed metal edges are no longer a shock or short-circuit risk.
- Mechanical security – it clamps the outermost terminal so blocks cannot slide sideways on the DIN35 rail under vibration.
- Protection – shields the open side of the terminal group from dust, debris and accidental contact during maintenance.
Compatible UK Series & Models

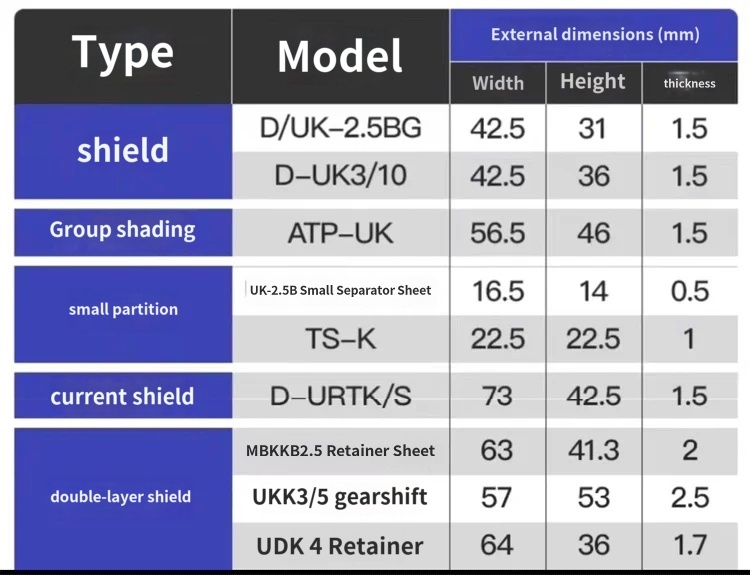

| Specification | Detail |
|---|---|

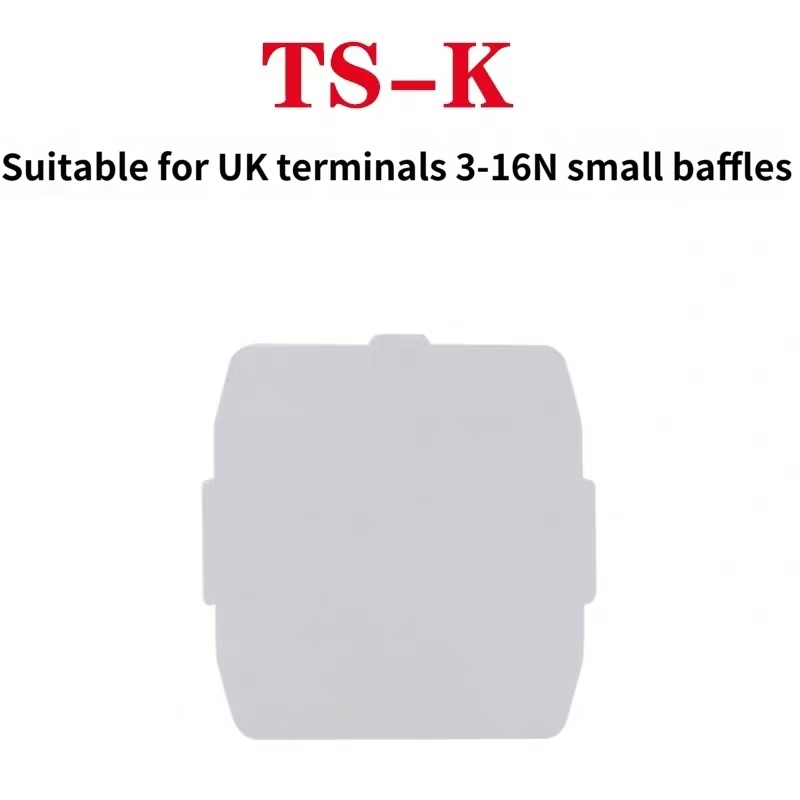

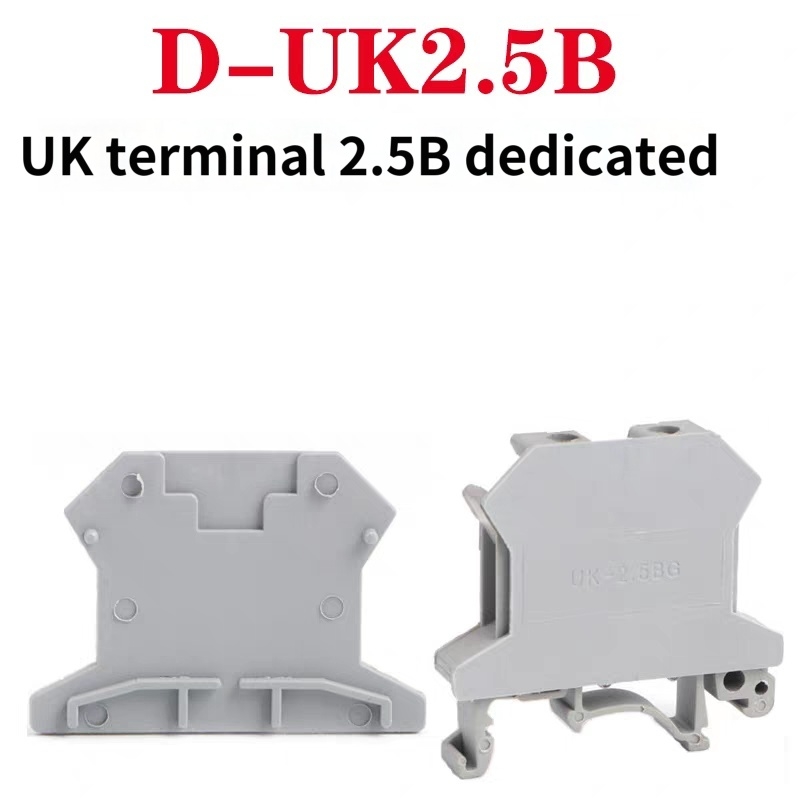

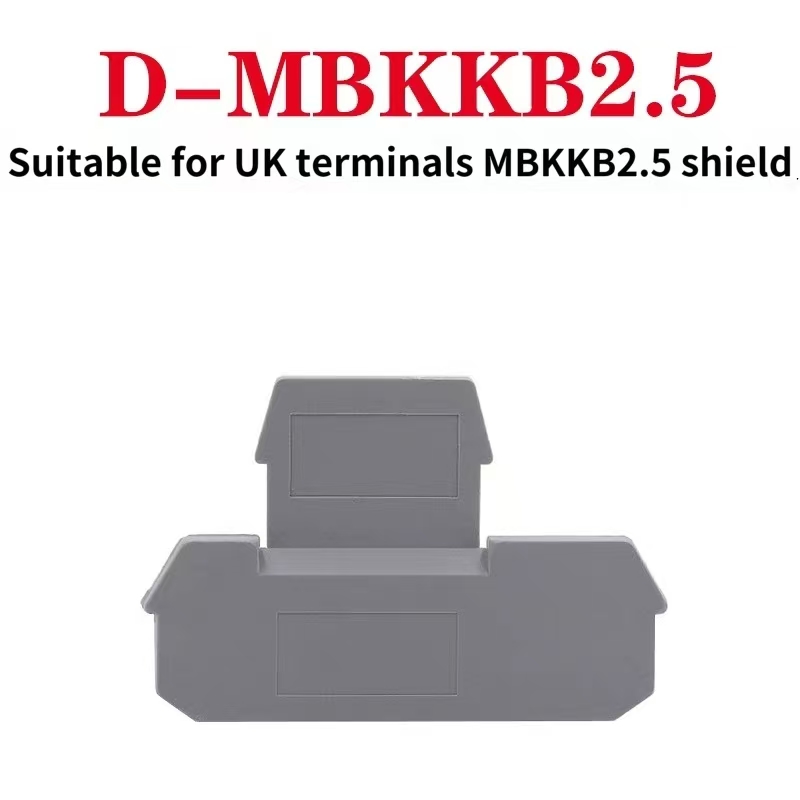

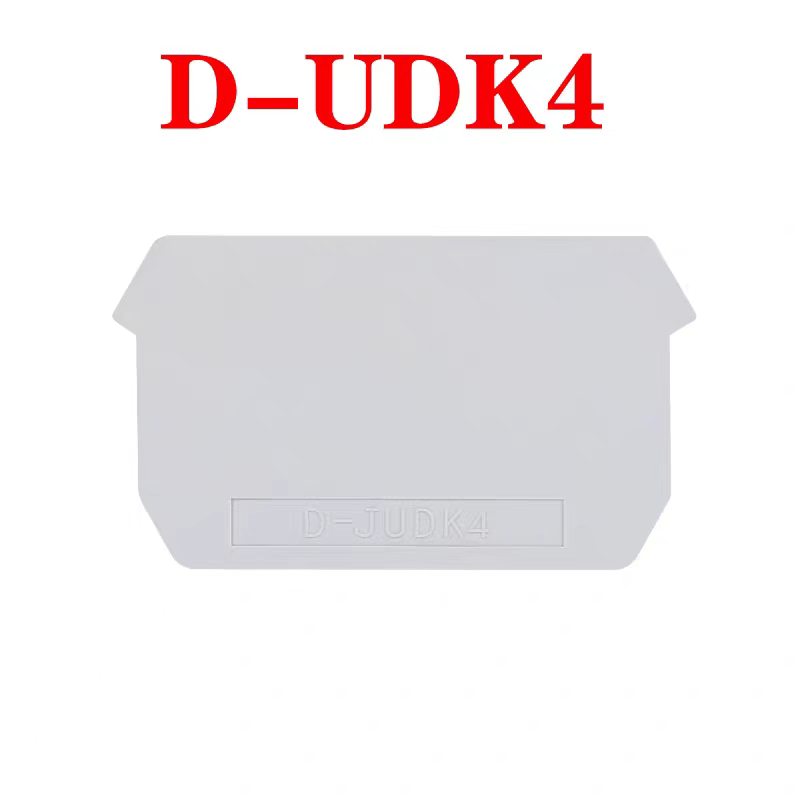

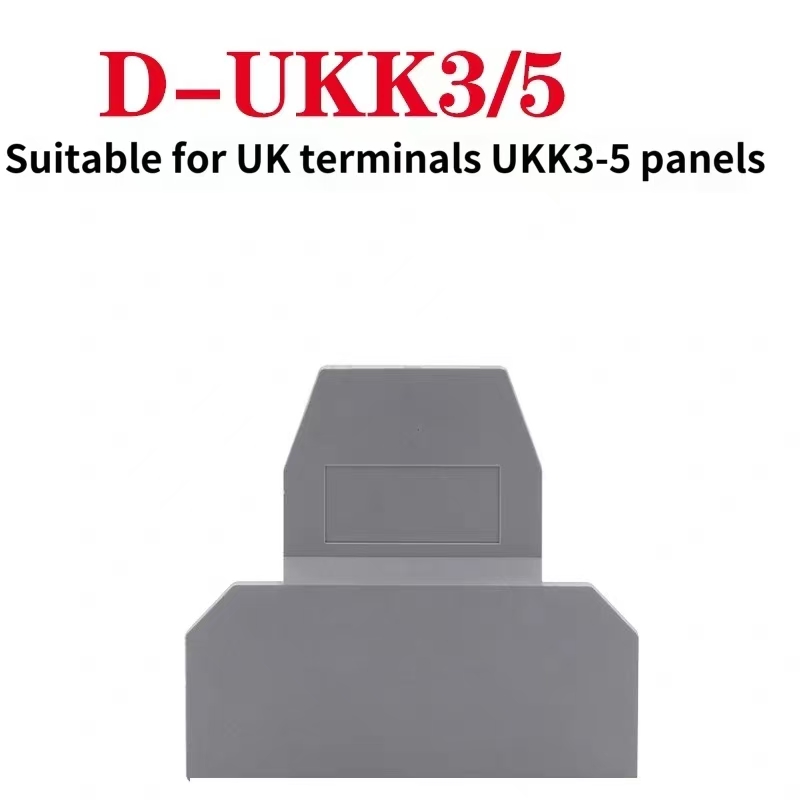

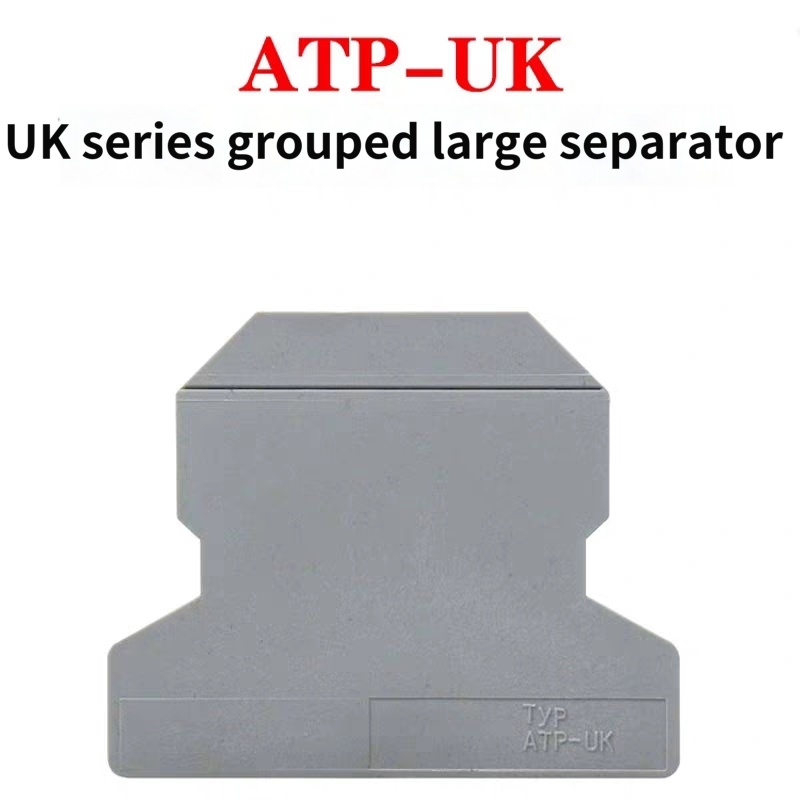

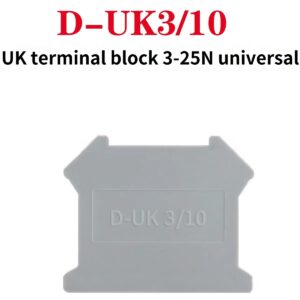

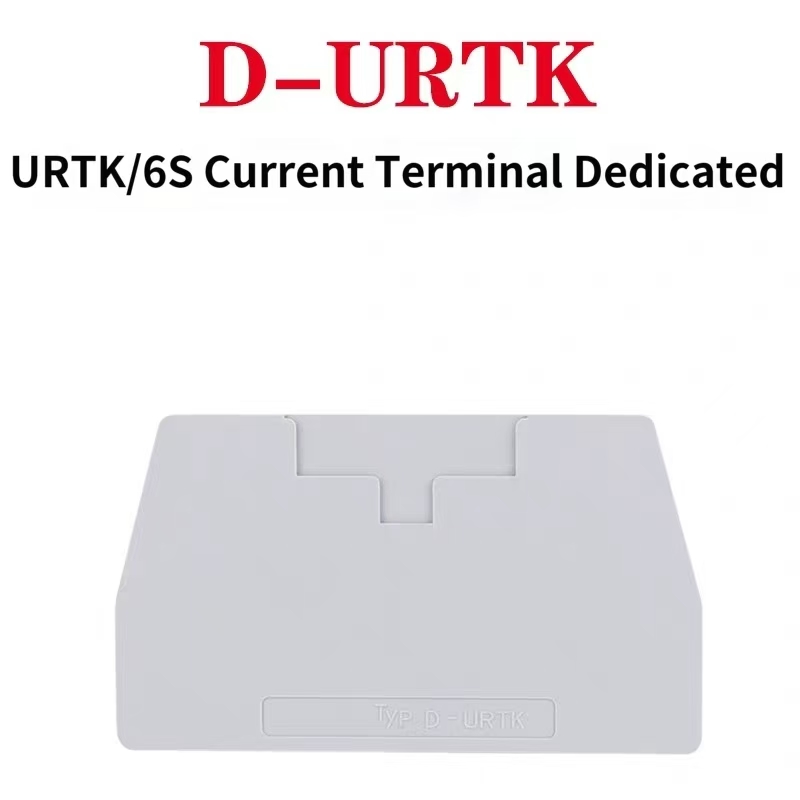

| End cover models | D-UK1.5, D-UK2.5B, D-UK3/10, D-UK16, D-UK-2.5BG, D-URTK/S, ATP-UK, TS-K, MBKKB2.5, UKK3/5, UDK4 |
| Fits terminal series | UK1.5N, UK2.5B, UK3N, UK5N, UK6N, UK10N, UK16N |
| Material | Flame-retardant PA66 nylon, UL94 V-0 |
| Color | Standard gray; red / blue / black available on request |
| Mounting | Snap-on, matched to DIN35 rail terminal groups |
Not sure which end cover matches your terminal group? Send us your terminal model number and we will confirm the correct D-UK variant within one working day.
Snap-On Installation in Seconds

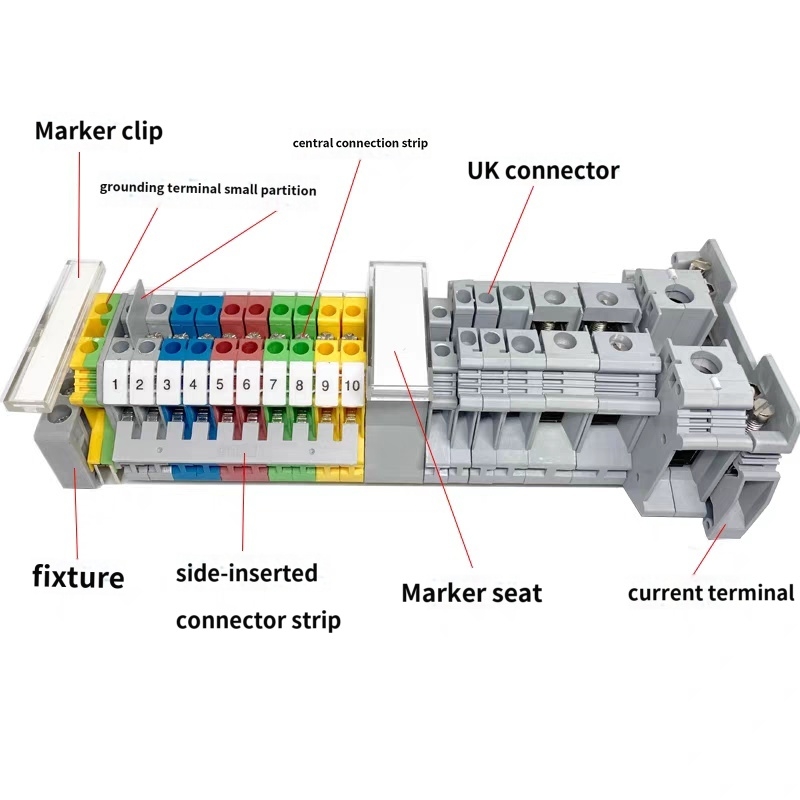

No tools are required – push the end plate onto the open side of the terminal group until it clicks into place on the rail. For safety and tidiness we recommend fitting one end cover at each end of every terminal group, and additional baffles between groups that carry different circuits.
Model: D-UK1.5 / D-UK2.5B / D-UK3/10 / D-UK16, D/UK-2.5BG, D-UK3/10, ATP-UK, UK-2.5B, TS-K, D-URTK/S,MBKKB2.5,UKK3/5,UDK4.
Applicable Terminal: UK1.5N, UK2.5B, UK3N, UK5N, UK6N, UK10N, UK16N
Material: Flame Retardant PA66 Nylon UL94-V0
Color: Standard Gray, Custom Red/Blue/Black
Mounting: Snap-on install on UK terminal end, DIN35 rail matched
