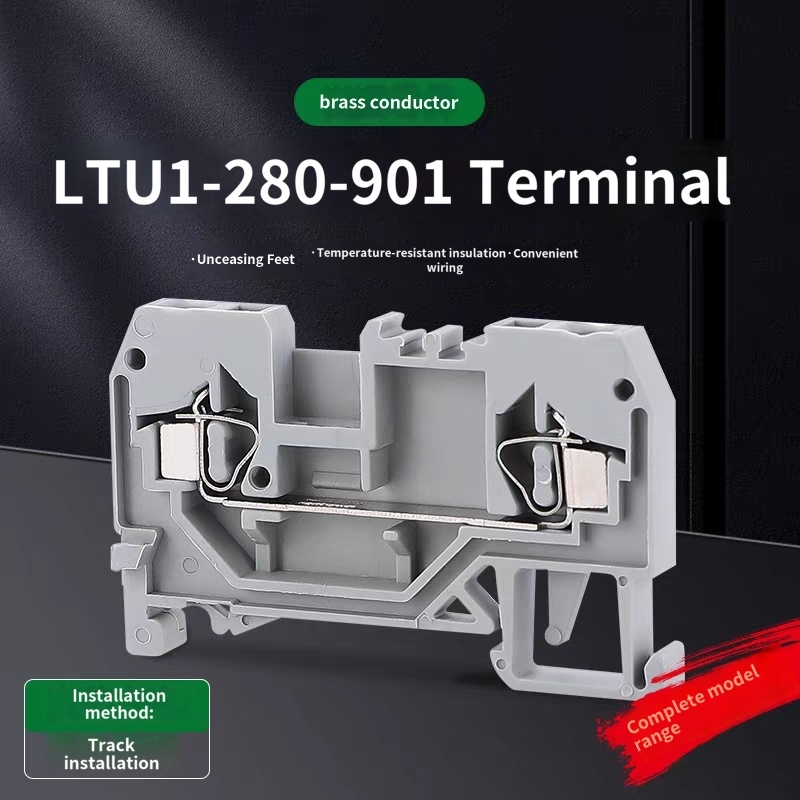

280-901 Grey 2 Wire Cage Clamp Terminal Block 2.5mm² for 35mm DIN Rail

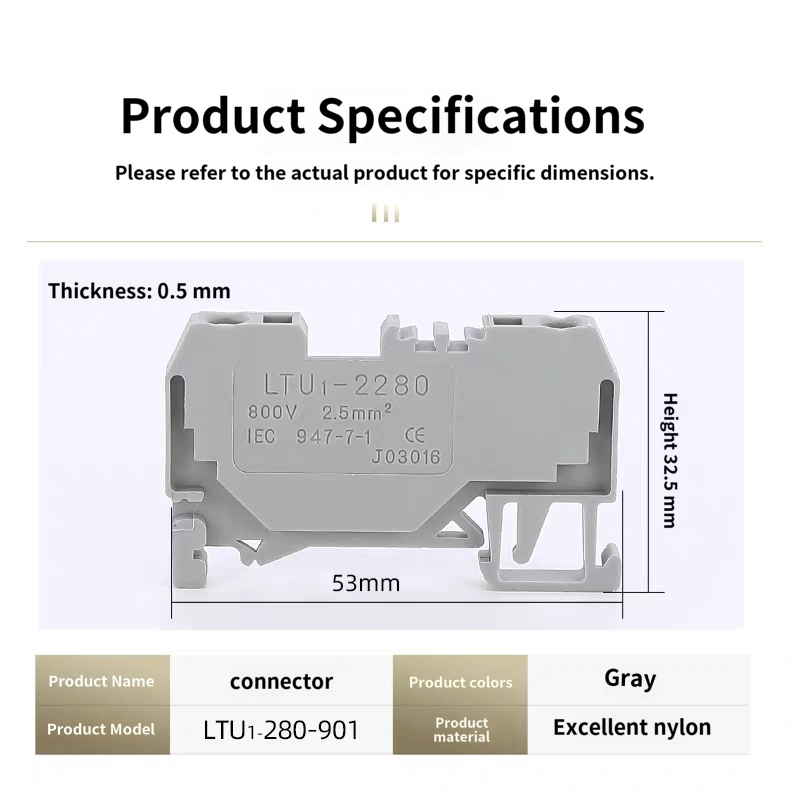

Product Basic Information
| Item | Specification |
|---|---|
| Model | 280-901 |
| Wire Connection | 2 wire type |
| Connection Mode | CAGE CLAMP spring connection |
| Conductor Cross Section | 2.5mm² |
| Rated Voltage | 800V |
| Rated Current | 24A |
| Working Temperature | -40℃ ~ 105℃ |
| Applicable Rail | 35×15mm, 35×7.5mm DIN rail |
| Color | Grey |
| Material | Flame retardant PA66 housing, stainless steel spring, tin-plated copper conductor |
| Fire Grade | UL94 V-0 |
| Certification | CE, RoHS, CQC |
| Features | Center marking, stable clamping, easy mounting, wide compatibility |
| Application | Power distribution cabinet, industrial equipment, circuit wiring connection |
Product Description
280-901 is standard 2-wire cage clamp terminal block designed for regular circuit connection. Built with clear center marking, it facilitates quick identification and neat wiring arrangement.

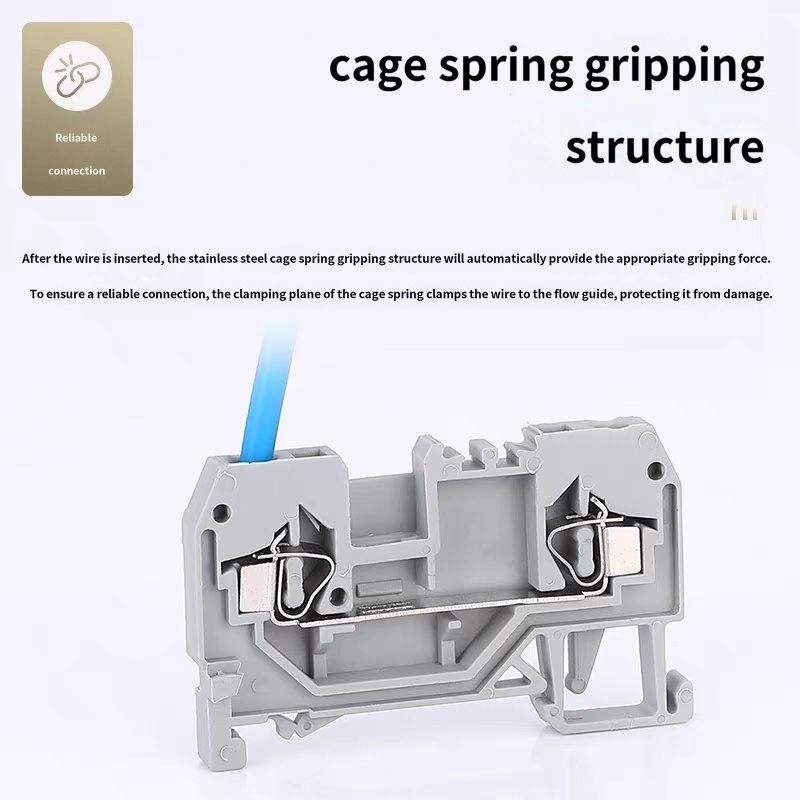

Compatible with two common 35mm DIN rail sizes, it fits most cabinet installation scenarios. Adopting reliable cage clamp structure, the terminal maintains steady clamping force to avoid loose contact under vibration. Tin-plated copper parts deliver stable conductive performance with low resistance.

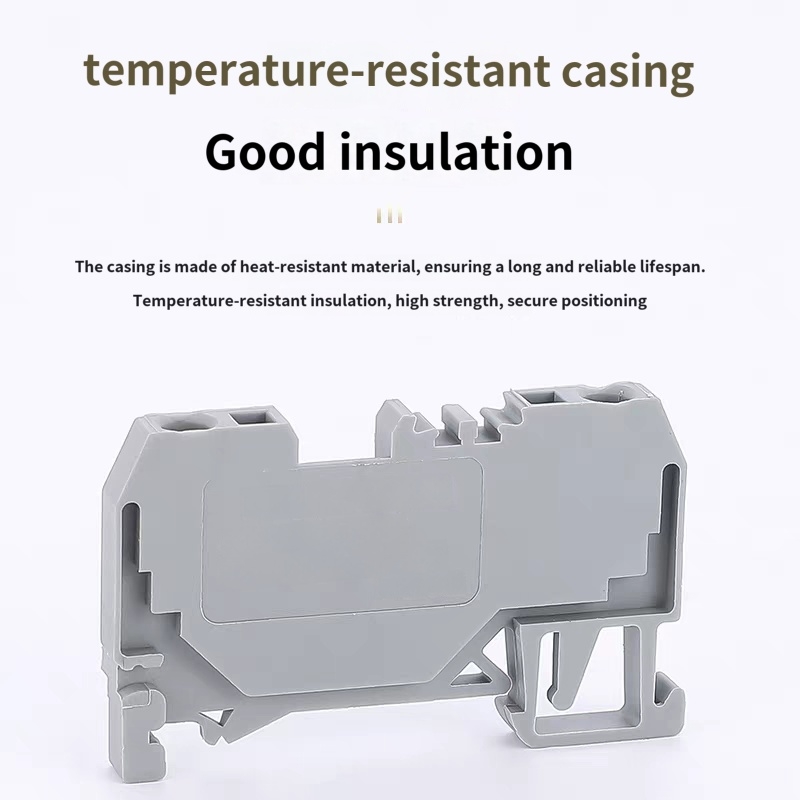

Grey flame retardant shell provides excellent insulation and fire safety. Compact and sturdy structure ensures long-term stable operation, ideal for conventional electrical wiring projects.
Product Features
- 2-wire Basic Connection
Suitable for general circuit straight wiring, simple and practical - Visible Center Marking
Easy positioning, convenient inspection and arrangement - Dual Rail Adaptability
Matches 35×15mm and 35×7.5mm standard mounting rails - Durable CAGE CLAMP Structure
Firm clamping, anti-loose and shock resistant performance - 2.5mm² Standard Wiring Capacity
Meet daily low voltage circuit connection demands - Grey Industrial Appearance
Uniform style, tidy overall wiring layout - High Safety Insulation Performance
Flame retardant material protects against leakage and short circuit - Qualified Certifications
Compliant with CE, RoHS, CQC safety standards
Application Scope
- Internal wiring of industrial power distribution cabinets
- Circuit connection for automation and mechanical equipment
- Low voltage conventional electrical terminal assembly
- Electrical engineering installation and maintenance
- Fixed line connection of indoor electrical facilities
Installation Steps
- Strip proper insulation from wire ends
- Operate spring mechanism to open wiring port
- Insert wire core fully and complete automatic clamping
- Install terminal onto corresponding DIN rail and fix steadily
Precautions
- Only apply wires within 2.5mm² specification range
- Ensure full wire insertion to guarantee good conduction
- Do not exceed rated voltage and current working limit
- Use in dry environment, keep away from corrosive substances
